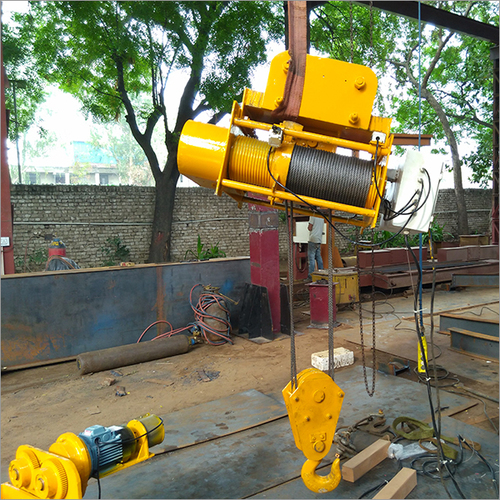

Commercial Electric Wire Rope Hoist

Name: Commercial Electric Wire Rope Hoist
Brand: VAISHNO CRANE & HOIST
Price: 125000 INR
Availability: InStock

Price 125000 INR/ Unit

Get a Price/Quote

MOQ : 1 Number

Commercial Electric Wire Rope Hoist Specification

Condition
New

Trolley Travel Speed
10-20 m/min

Crane Total Weight
Varies with model (standard starting at approx. 150 kg)

Crane Traveling Speed
8-20 m/min (Depending on model)

Working Presssure
Not applicable (Electric powered)

Recommend Power
3 to 15 kW (According to capacity)

Feature
Other

Material
High-grade steel

Crane Type
Electric Wire Rope Hoist

Application
Industrial lifting, construction, manufacturing

Span Length
Customizable up to 20 meters

Loading Capacity
Up to 20 Ton

Lifting Time
Varies by load (Approx. 4 m/min)

Lifting Capacity
1 to 20 Ton

Lifting Height
6 m to 36 m

Control Type
Pendant Control, Optional Remote Control

Emergency Stop
Yes

Hook Type
Forged Steel, Swivel Hook with Safety Latch

Finish
Powder Coated, Anti-Corrosive Paint

Hoist Type
Monorail and Double Girder Available

Duty Class
ISO M4/M5

Noise Level
< 75 dB

Standard Accessories
Wire Rope, Hook, Control Panel, Limit Switches

Voltage
380V/415V, 3 Phase, 50Hz

Mounting Type
Suspended or Hook Mounted

Protection Class
IP54/IP55 for Motor and Controls

Motor Power
As per capacity, up to 15 kW

Wire Rope Diameter
8 mm to 24 mm

Operating Temperature
-20C to +50C

Commercial Electric Wire Rope Hoist Trade Information

Minimum Order Quantity
1 Number

Supply Ability
6 Per Month

Delivery Time
1 Months

Main Domestic Market
All India

About Commercial Electric Wire Rope Hoist

Electric Wire Rope Hoist is used in construction area, lifting of heavy objects and trading industry. We fabricate this according to standard and customized range in compliance with national and international quality standards. It is precisely engineered for excellent performance, low maintenance and smooth operating. It is good for its smooth performance and speed movement for demanding higher works. Electric Wire Rope Hoist can be obtained from us in assorted specifications at inexpensive prices.

Electric Wire Rope Hoists are designed, manufactured & tested to meet IS standards, Robust Gearbox design ensures better reliability of the product life span and safety. More Details: We as a leading electric wire rope hoist manufacturer serve electric wire rope hoist to our customers with various models and designs to meet their ultimate demands.

Product Specification

Color	Blue
Capacity	0-1 ton, 10-15 ton
Trolley Option	With Trolley, Without Trolley
Chain Length	0-2 m, 2-4 m
Material	SS

Precision Performance for Demanding Tasks

Our Electric Wire Rope Hoist combines strength and precision, meeting ISO M4/M5 duty classes for tough industrial operations. Its forged steel swivel hook with a safety latch, anti-corrosive finish, and IP54/IP55 motor protection guarantee longevity and reliable performance even under intense workloads. Ideal for lifting bulky materials safely and efficiently.

Versatile Configurations and Customization

Offered in both monorail and double girder types, this hoist adapts to a variety of setups, including both suspended and hook-mounted installations. Choose from several power options (up to 15 kW) and customize spans up to 20 meters, ensuring the perfect fit for your site. The control panel and safety features enable straightforward operation and swift emergency stops.

FAQs of Electric Wire Rope Hoist:

Q: How can I select the correct model of Electric Wire Rope Hoist for my application?

A: Selecting the appropriate hoist depends on your lifting requirements, such as desired lifting capacity (120 Ton), span length, lifting height (636 m), and operational environment. Consider whether you require a monorail or double girder model, the available voltage (380V/415V), and whether pendant or remote control suits your workflow best.

Q: What are the main benefits of using this Electric Wire Rope Hoist?

A: Key benefits include durable construction, smooth and silent operation (<75 dB), heavy-duty load handling, and safety features like electromagnetic brakes and dual limit switches. The hoists anti-corrosive finish and IP54/IP55 protection ensure long service life, even in harsh industrial settings.

Q: Where is this hoist typically installed or used?

A: Primarily deployed in industrial plants, construction sites, warehouses, and manufacturing facilities, the hoist is suitable for both indoor and outdoor lifting applications. It can be suspended or hook-mounted on cranes to suit specific operational needs.

Q: What is the usage process for operating the hoist?

A: Operators use the control pendant or optional remote control to maneuver the hoist. Standard accessories like the control panel, wire rope, forged steel hook with safety latch, and electromagnetic brake ensure safe lifting and lowering of loads. Emergency stop and limit switches provide added operational safety.

Q: When is maintenance required for the Electric Wire Rope Hoist?

A: Regular maintenance, as recommended in the user manual, helps ensure optimal performance and safety. Inspect wire rope, brakes, limit switches, and controls periodically. Service frequency may vary with usage intensity, typically ranging from monthly checks to more frequent inspections for heavy-duty applications.

Q: What measures are in place to ensure the safety of this hoist?

A: The hoist incorporates an electromagnetic brake, upper and lower limit switches, forged steel swivel hook with safety latch, and an emergency stop system, all designed to prevent mishaps and protect operators and materials during lifting operations.
